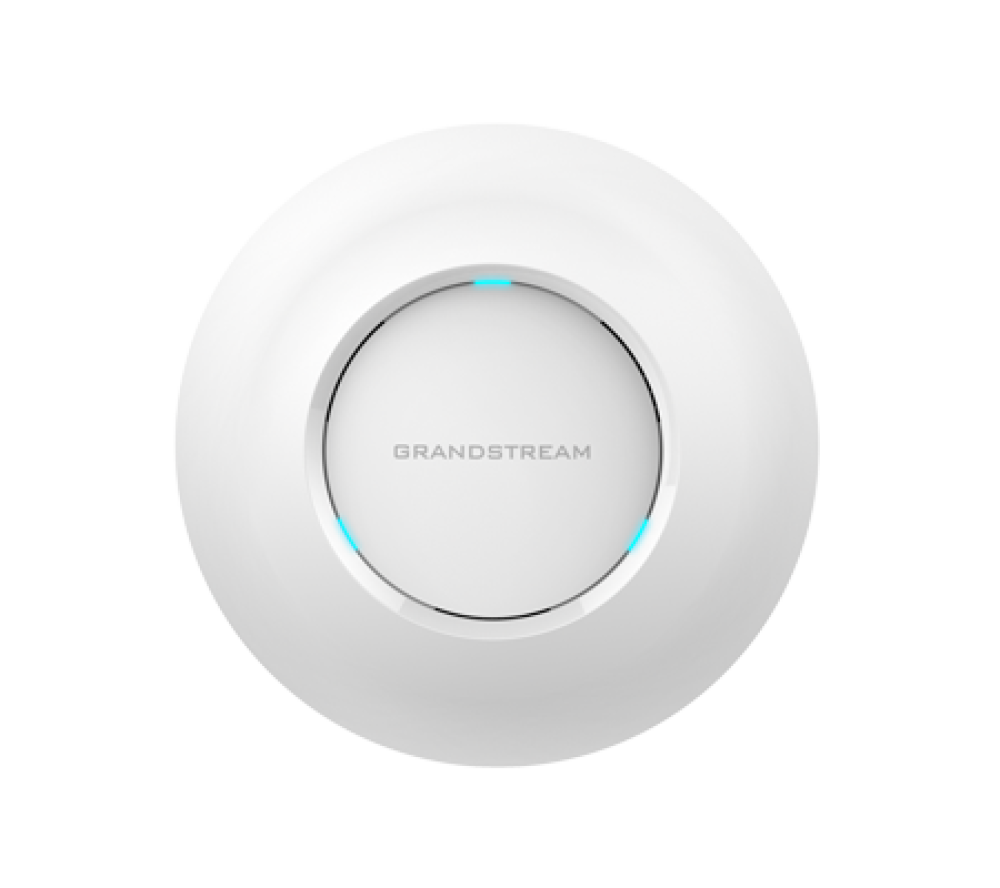

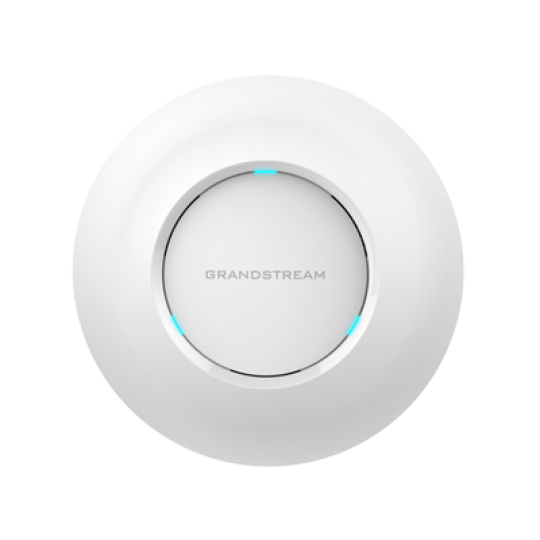

GWN7600

SPECIFICATIONS

• Device type: Indoor
• Wifi standard: 802.11 a/b/g/n/ac (Wave-2)
• Operating frequency range: 2.4GHz and 5GHz
• Maximum data rate: 1267Mbps (400Mbps/2.4GHz and 867Mbps/5GHz)
• Communication network port: 2×10/100/1000 Base-T Ethernet Ports, RJ45
• Support number of broadcast names: 16 SSID/radio
• Support VLAN: 802.1Q, VLAN per SSID
• Transmission power: strong, 22dBm (158mW)/ 2.4GHz; 22dBm (158mW)/ 5Ghz
• Coverage area: relatively large, about 165m
• Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Antenna: Integrated/ Omnidirectional, 3dBi, 2×2:2 2.4GHz (MIMO); 3dBi, 2×2:2 5GHz (MU-MIMO)
• Wireless Mode: Access Point, Station, Mesh
• Network Mode: NAT, Bridge, Hotspot (UAM)
• Maximum Power Consumption: 13.8W
• Operating Temperature: 0°C ~ 50°C
• Concurrent Users (Recommended): 80 Connections
• Power supply: PoE 802.3at/af or DC: 24V 1A
