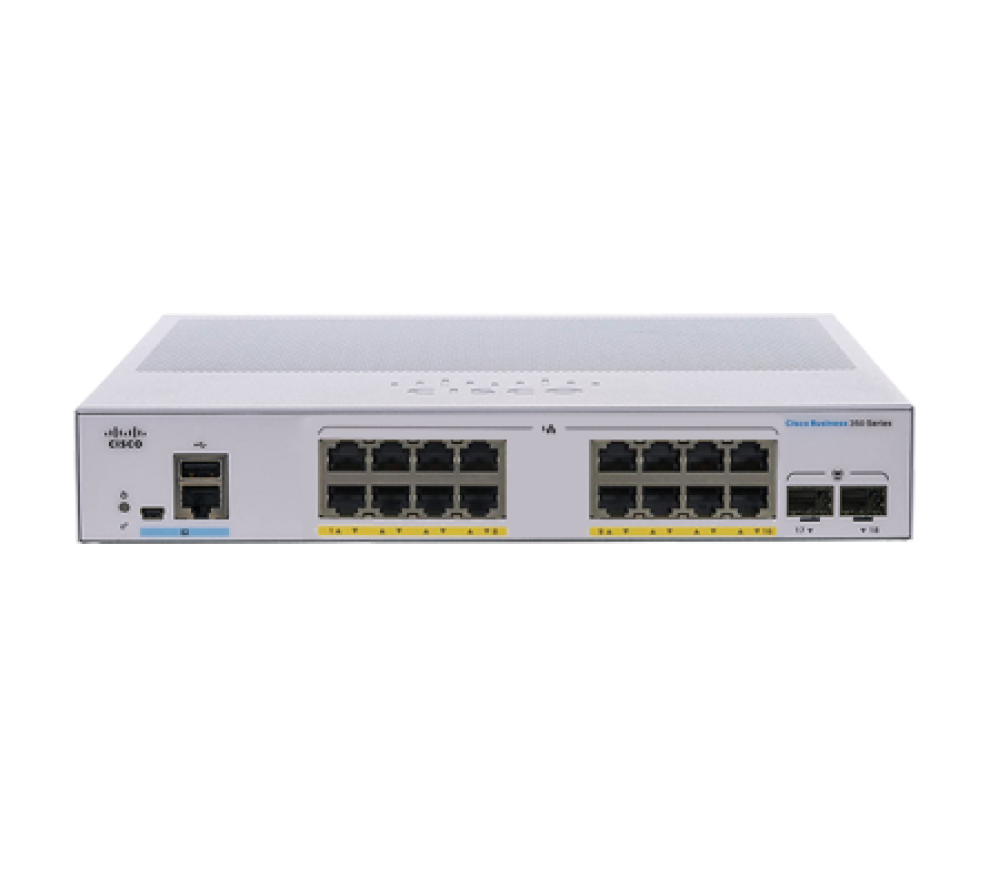

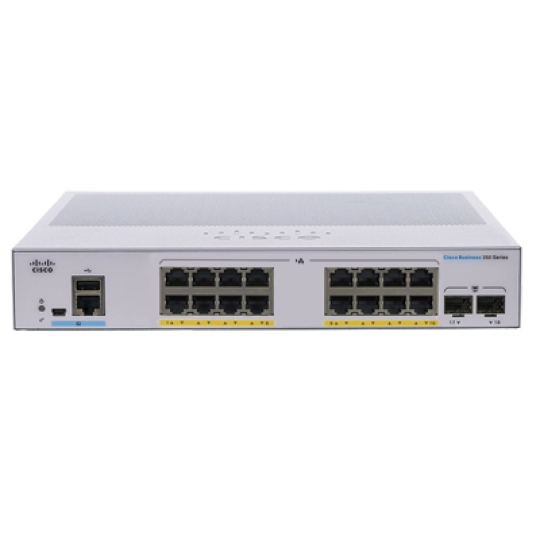

CBS350-16P-2G-EU

SPECIFICATIONS

• Standards and protocols: IEEE802.3D, IEEE802.3S, IEEE802.3W, IEEE802.3Q, IEEE802.3p, IEEE802.3X, IEEE802.3x, IEEE802.3ab, IEEE802.3z, IEEE802.3ad, IEEE802.3az, IEEE802.3at, IEEE802.3af
• Communication ports: 16×10/100/1000Mbps RJ45 supporting PoE/PoE+, 2xSFP
• Switching capacity: 36Gbps
• Packet switching rate: 26.78Mpps
• MAC address table: 16K
• Jumbo frame: 9KB
• Packet buffer: 12Mb (1.5MB)
• Processor: 256MB Flash, 800MHz ARM CPU, 512MB Memory
• VLAN support: up to 4094 VLANs; Port-based, 802.1Q, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN; Q-in-Q
• Port Grouping support: 8 groups (up to 8 ports/group), up to 16 ports for Port Grouping
• Layer 3 Static routing: 990 static routes with 128 IP interfaces
• Layer 3 DHCP server: 128 pools
• Maximum Power Consumption: 148.8W (PoE 120W, 220V)
• Operating Temperature: -5°C ~ 50°C
• Power Supply: 100-240VAC, 50/60Hz
