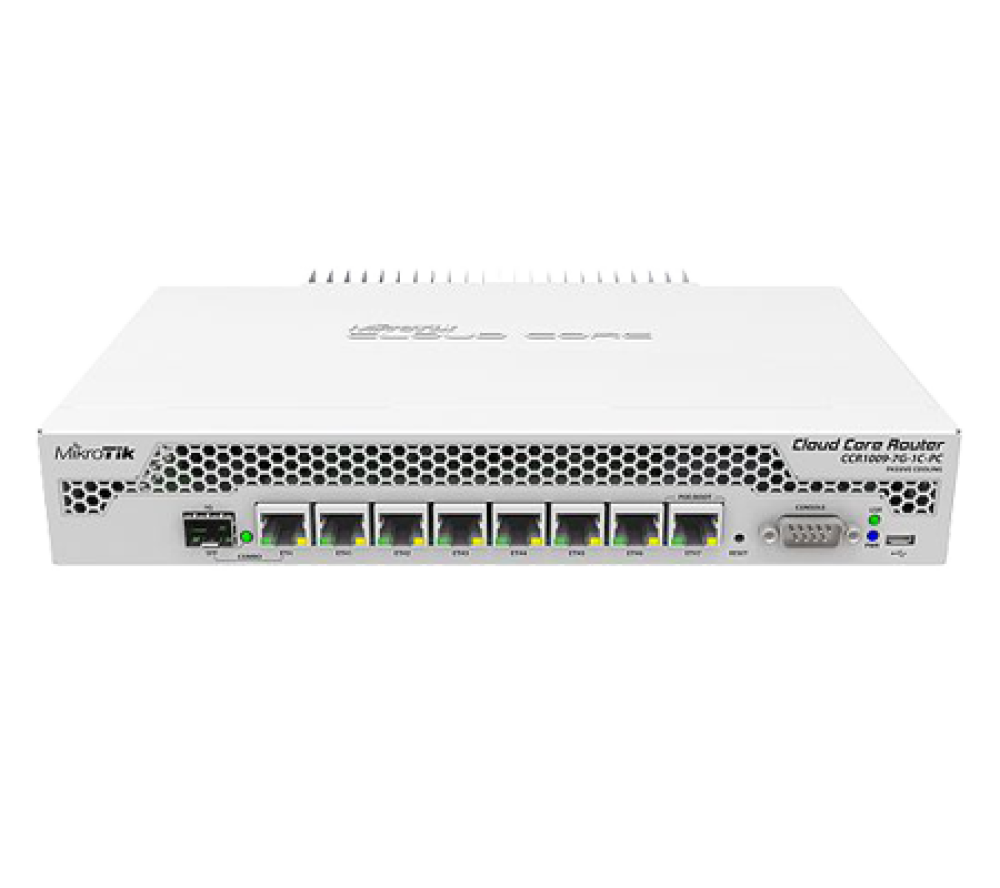

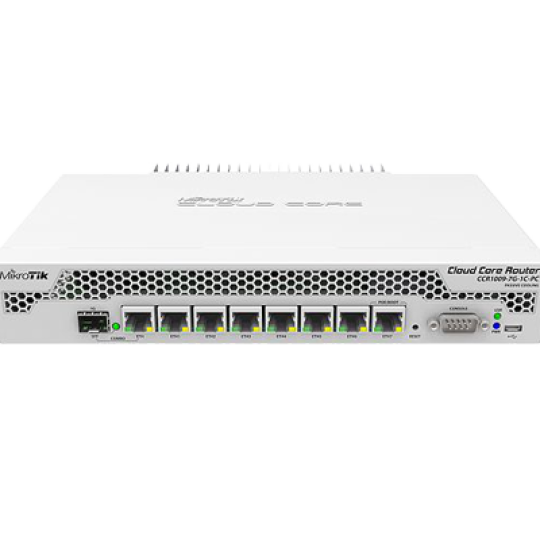

CCR1009-7G-1C-PC

TECHNICAL SPECIFICATIONS

• Processor: 9 core CPU TLR4-00980CG-10CE-A3a, 1GHz (each core), 1GB DDR3 RAM, 128MB Flash, TILE architecture, RouterOS L6
• Network communication ports: 7×10/100/1000Mbps RJ45, 1xCombo 1000Mbps RJ45/SFP
• MicroUSB port: 1 (Memory USB/ 3G/ LTE)
• Serial port: 1 (RS232 + Header)
• PoE in/out support: 1xPoE in
• Network performance (routing fast path): 7.910Gbps (packets 512 bytes or larger), 14.581Mpps (64-byte packets)
• Maximum power consumption: 30W
• Operating temperature: -20°C ~ 70°C
• Concurrent users (recommended): 3000~3500 connections
• Power supply: Power adapter 24V 2.5A or Passive PoE
