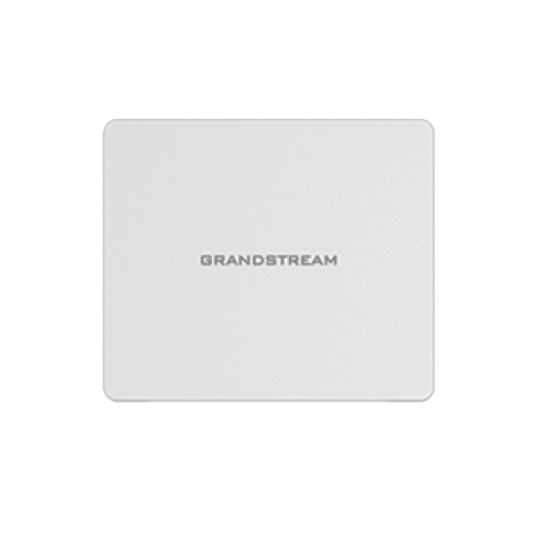

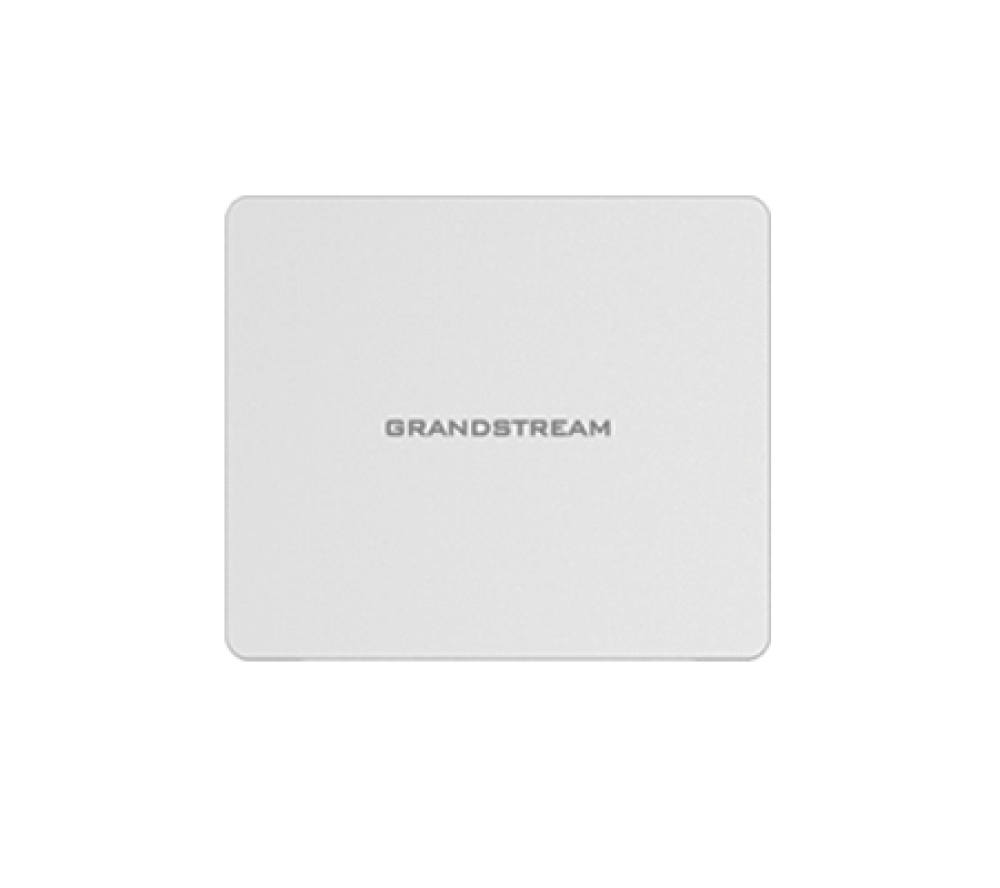

GWN7602

TECHNICAL SPECIFICATIONS

• Device line: Indoor
• Wifi standard: 802.11 a/b/g/n/ac
• Operating frequency range: 2.4GHz and 5GHz
• Maximum data rate: 1167Mbps (300Mbps/2.4GHz and 867Mbps/5GHz)
• Network communication ports: 1×10/100/1000 Base-T Ethernet Ports RJ45 Uplink, 3×10/100 Base-T (support 2xPoE out), RJ45
• Support number of broadcast names: 4 SSID/radio
• Support VLAN: 802.1Q, VLAN per SSID
• Transmission power: strong, 21dBm (125mW)/ 2.4GHz; 21dBm(125mW)/ 5Ghz
• Coverage: about 100m
• Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Antenna: Integrated/omnidirectional, 3dBi+ 3.5dBi, 2x:2 2.4GHz (MIMO); 3.5dBi+3dBi, 2×2:2 5GHz (MIMO)
• Wireless Mode: Access Point, Station, Mesh
• Network Mode: NAT, Bridge, Hotspot (UAM)
• Maximum power consumption (with PoE): 20W
• Operating temperature: 0°C ~ 40°C
• Concurrent users (recommended): 30 connections
• Power supply: PoE 802.3at/af
