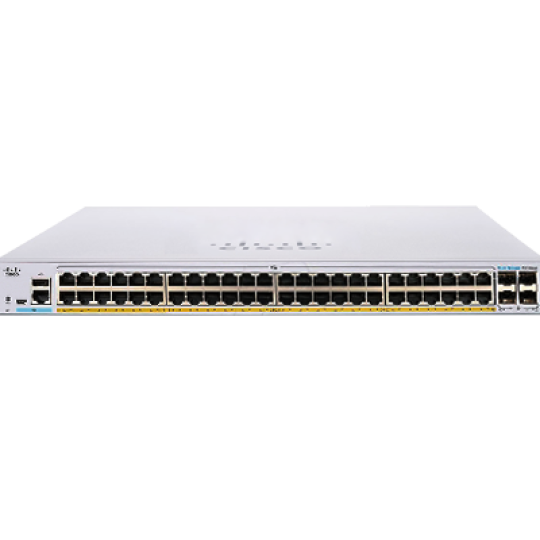

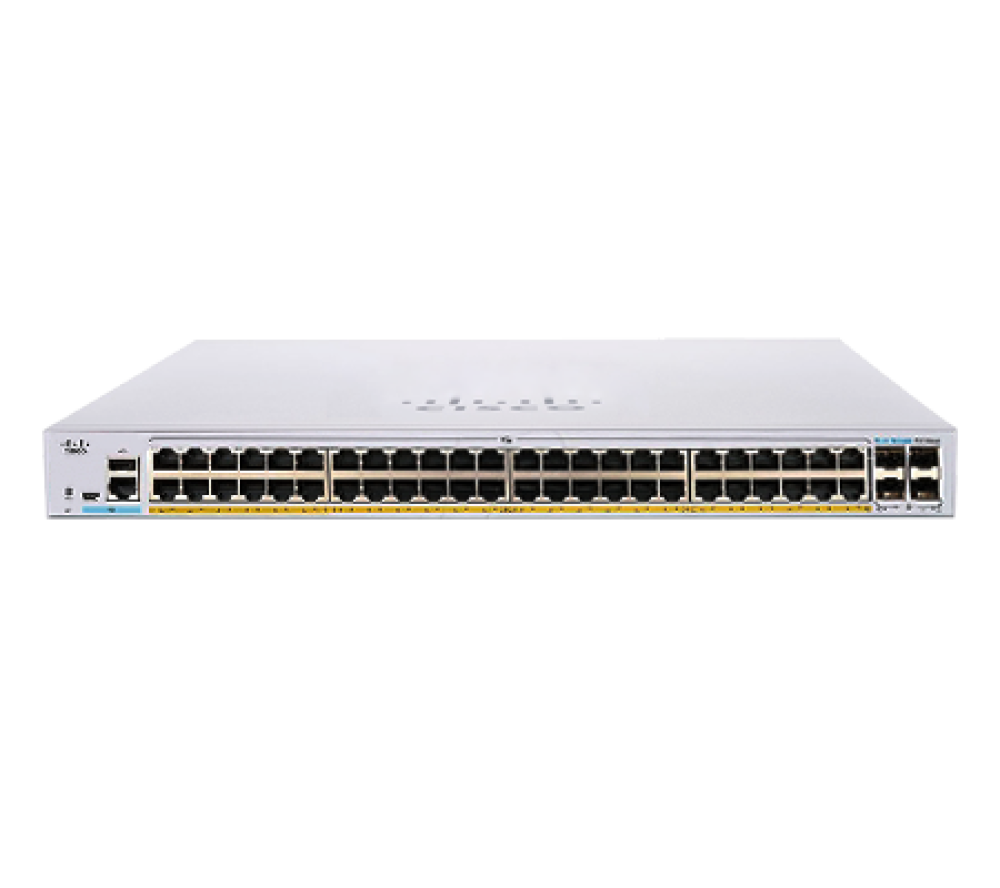

CBS350-48T-4G

TECHNICAL SPECIFICATIONS

• Standards and protocols: IEEE802.3D, IEEE802.3S, IEEE802.3W, IEEE802.3Q, IEEE802.3p, IEEE802.3X, IEEE802.3x, IEEE802.3ab, IEEE802.3z, IEEE802.3ad, IEEE802.3az
• Ports: 48×10/100/1000Mbps RJ45, 4xSFP
• Switching capacity: 104Gbps
• Packet switching rate: 77.38Mpps
• MAC address table: 16K
• Jumbo frame: 9KB
• Packet buffer: 24Mb (3MB)
• Processor: 256MB Flash, 800MHz ARM CPU, 512MB Memory
• VLAN support: up to 4094 VLANs; Port-based, 802.1Q, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN; Q-in-Q
• Support Port Grouping: 8 groups (maximum 8 ports/group), maximum 16 ports for Port Grouping
• Layer 3 Static routing: 990 static routes with 128 IP interfaces
• Layer 3 DHCP server: 128 pools
• Maximum power consumption: 48.64W (220V)
• Operating temperature: -5°C ~ 50°C
• Power supply: 100-240VAC, 50/60Hz
