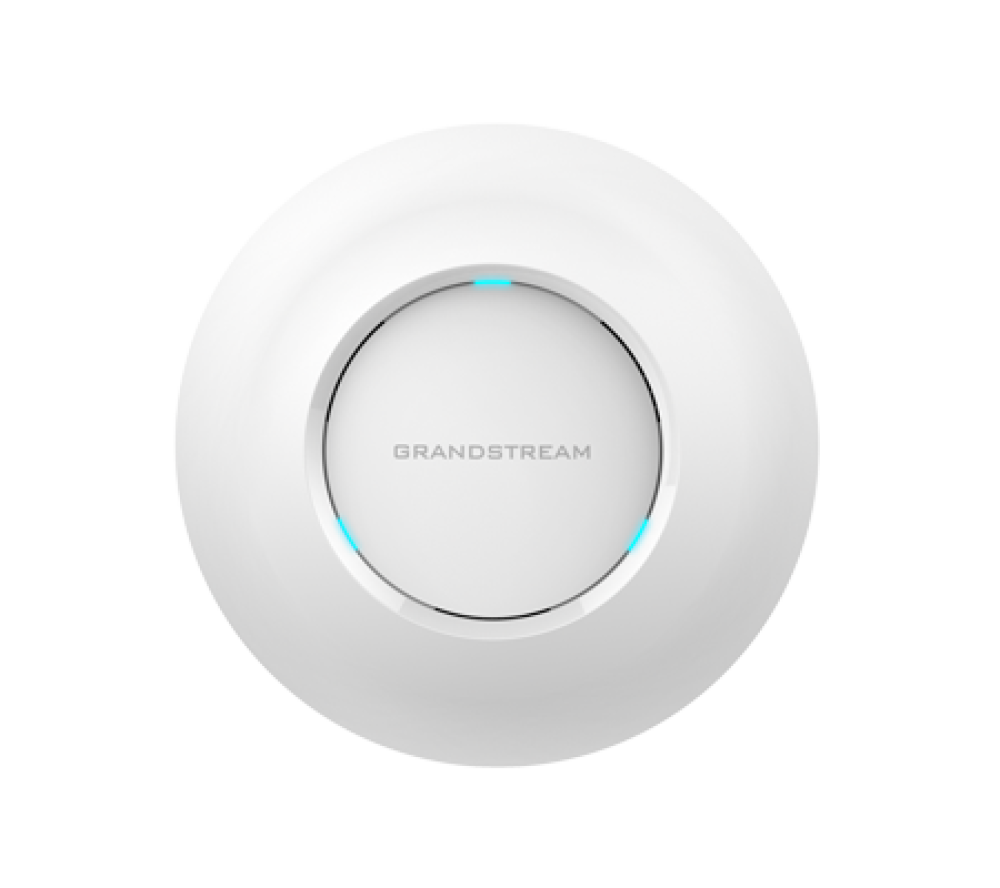

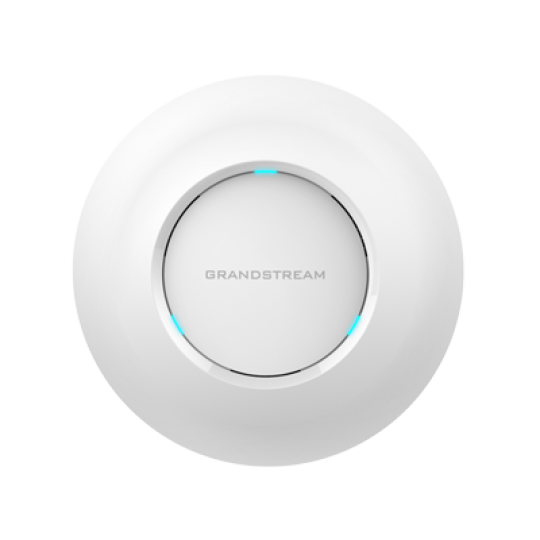

GWN7630

TECHNICAL SPECIFICATIONS

• Device line: Indoor
• Wifi standard: 802.11 a/b/g/n/ac (Wave-2)
• Operating frequency range: 2.4GHz and 5GHz
• Maximum data rate: 2333Mbps (600Mbps/2.4GHz and 1733Mbps/5GHz)
• Network interface: 2×10/100/1000 Base-T Ethernet Ports, RJ45
• Support number of broadcast names: 16 SSID/radio
• Support VLAN: 802.1Q, VLAN per SSID
• Transmission power: Very strong, 27dBm (500mW)/ 2.4GHz, 25dBm (316mW)/ 5Ghz
• Coverage: Very wide, up to 175m
• Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Antenna: Integrated/omnidirectional, 4dBi, 4×4:4 2.4G(MIMO); 5dBi 4×4:4 5G(MU-MIMO)
• Wireless Mode: Access Point, Station, Mesh
• Network Mode: NAT, Bridge, Hotspot (UAM)
• Maximum Power Consumption: 16.5W
• Operating Temperature: 0°C ~ 40°C
• Concurrent Users (Recommended): 100-120 Connections
• Power Supply: PoE 802.3at/af/az or DC: 24V 1A
